Pulleys

AustriAlpin Lightweight Pulley

Hinged side blades and synthetic pulley sheave. To be used with ropes up to 12 mm.

Weight 48g
Length 70mm
Width 36mm
recomm. rope diametermax. 12mm
Intake 12mm
Inner diameter 19mm
Min. breaking load 15kN
Load capacity 2x2kN
Made in Austria
EN 12278:2007

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
9792-00		AustriAlpin Lightweight Pulley	Stock Level: In Stock	RRP: $31.00	Quantity:		Add to Favourites

CMC 1.5" PMP S/S Swivel Pulley

Our new Prusik-minding pulley (PMP) is ideal for high anchor points
or tripod use. The rotating swivel aligns the rope with the direction of
the pull. Its stainless steel sheave can be used with either rescue
rope or wire cable. By combining the swivel with the pulley, overall
system length is minimized, increasing travel. The patented pivoting
side plate allows the rope to be quickly inserted.
• Stainless steel sheave allows use with wire cable
• Prusik-minding side plate opens without having to disconnect the pulley from the anchor
• A double-detent button prevents accidental opening of side plate
• Sealed ball bearings provide maximum efficiency
PRODUCT WEIGHT 11.3 OZ (320 G)
TYPE SINGLE SHEAVE TREAD SIZE 1-1/2 X 1/2 IN (38 X 13 MM)
SHEAVE STAINLESS STEEL
COLOR BRONZE / SLATE
NFPA RATING GENERAL USE
3 SIGMA MBS 43 KN

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
C300430		CMC 1.5" PMP S/S Swivel Pulley	Stock Level: Pre-order Special Order	RRP: $330.00	Quantity:		Add to Favourites

CMC 1.5" Single Swivel Pulley

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
C300431		CMC 1.5" Single Swivel Pulley	Stock Level: Pre-order Special Order	RRP: $270.00	Quantity:		Add to Favourites

CMC Aztek Omni Pulley

The AZTEK OMNI pulley blocks and sheaves are machined from solid
aluminum, feature swivel connection points, and utilize high-efficiency
bearings. These pulleys were developed in the early 2000’s by Reed
Thorne of Sedona based Ropes That Rescue. The AZTEK system has
become a valuable multipurpose tool of rescue and technical rope access
practitioners. The AZTEK pulleys are offered individually or included in
our AZTEK ProSeries System
Note: The Slate blue pulley includes the AZTEK quick release pin and the Orange pulley comes with the side becket cover and screw.
Orange
226g
Sheave 26mm x10mm
NFPA Technical Use
43kN

Code	Product Name	Stock Level	Price	Quantity	Wishlist
C300320	CMC Aztek Replacement Quick Release Pin	Stock Level: Pre-order Special Order	RRP: $54.00	Quantity:	Add to Favourites
C300321	CMC Aztek Omni Pulley Orange	Stock Level: Pre-order Special Order	RRP: $276.00	Quantity:	Add to Favourites
C300322	CMC Aztek Omni Pulley Slate Blue	Stock Level: Pre-order Special Order	RRP: $276.00	Quantity:	Add to Favourites

CMC CSR2 Pulleys

The design of our redesigned CSR2 (Confined Space Rescue) Pulley is stronger yet lighter and incorporates 7/16 in (11 mm) to 1/2
in (13 mm) life safety rope. Ideal for industrial applications as well as many rescue operations, the CSR2 uses our proprietary,
patented locking system, which eliminates a toothed cam or Prusik so it can be easily and safely released while under load. (The absence of the
toothed cam means that even if the system is fully collapsed and pulled tight, it can still be released easily. Systems using a toothed cam must
be raised even further before the cam can be released, which can be impossible if the system is fully collapsed without thinking about this
problem ahead of time – causing potential problems with the load on the system becoming stuck.) An integral thrust-bearing swivel reduces torque
by aligning the pulley with the load, thereby increasing efficiency and safety. Its larger size allows for the easy application of rescue-size
carabiners.
Machined from a solid block of aircraft-grade aluminum, the CSR2 features a high-strength aluminum side plate, sealed bearings and
anodized aluminum sheaves. The side becket location allows for maximum lift height and full retraction of the system, and a removable becket
cover facilitates changing out lifeline with sewn terminations.
All-new stronger, lighter-weight design
Compatible with 11-13 mm life safety rope
Meets NFPA 1983 (2017 ED) – General Use
CSR2 Pulley MBS 46 kN (10,341 lbf) / CSR2 Double Pulley MBS 45 kN (10,116 lbf)
Machined from solid block of aircraft-grade aluminum
Made in USA
Weight 1.5 lb (680 g)
Sheave Tread Size 2 1/4 x 1/2 in (57 x 13 mm)
Color Gray
NFPA Rating General Use
MBS 45 kN (10,116 lbf)

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
C300342		CMC CSR2 Double Pulley	Stock Level: Pre-order Special Order	RRP: $951.00	Quantity:		Add to Favourites
C300343		CMC CSR2 Pulley	Stock Level: Pre-order Special Order	RRP: $1,730.00	Quantity:		Add to Favourites

CMC Kootenay Ultra Pulley

Our Kootenay Ultra Pulley is the most functional, versatile knot-passing
and high-strength tie-off pulley available. For high lines, the rigging
holes allow for optimum separation of tag lines and hoist ropes for
reeving variations. For English and Norwegian reeves, a greater spread
between the hoist pulleys significantly reduces the chance of
inadvertent spinning of the load. Separate rigging holes make rigging
easier and also prevent carabiners from binding against each other. For
high-strength tie-offs, the integrated sheave-lock pin inserts easily
into the sheave-lock hole from its stowed axle position. The strong,
durable anodized aluminum sheave is fitted with sealed ball bearings for
long wear and high efficiency.
PRODUCT WEIGHT 1.6 LB (709 G)
SHEAVE TREAD SIZE 2-1/4 X 2-1/2 IN (57 X 64MM)
COLOR ORANGE
NFPA RATING GENERAL USE
3 SIGMA MBS 44 KN

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
C300391		CMC Kootenay Ultra Pulley	Stock Level: Pre-order Special Order	RRP: $511.00	Quantity:		Add to Favourites

CMC PMP Swivel Pulley 1.1

NOW CERTIFIED to NFPA 1983 – Technical Use
The compact, lightweight Prusik-minding pulley (PMP) Swivel 1.1 is ideal
for backcountry use where every packable ounce matters. The rotating
swivel aligns the rope with the direction of the pull. By combining the
swivel with the pulley, overall system length is minimized, increasing
travel. The patented pivoting side plate allows the rope to be quickly
inserted
Prusik-minding side plate opens without having to disconnect the pulley from the anchor
A double-detent button prevents accidental opening of side plate
Sealed ball bearings provide maximum efficiency
Aluminum sheave
Works with rope sizes up to 13 mm
UL Classified to NFPA 1983 – Technical Use
3 Sigma MBS 20 kN (4,496 lbf)
PRODUCT WEIGHT 5.1 OZ (145 G)

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
C300434		CMC PMP Swivel Pulley 1.1	Stock Level: In Stock Special Order	RRP: $225.00	Quantity:		Add to Favourites

CMC PMP Swivel Pulley 2.6

The larger sized Prusik-minding pulley (PMP) Swivel 2.6 is ideal for
industrial rescue use where maximum pulley efficiency and strength is
important. The rotating swivel aligns the rope with the direction of the
pull. By combining the swivel with the pulley, overall system length is
minimized, increasing travel. The patented pivoting side plate allows
the rope to be quickly inserted.
Prusik-minding side plate opens without having to disconnect the pulley from the anchor
A double-detent button prevents accidental opening of side plate
Sealed ball bearings provide maximum efficiency
Aluminum sheave
Works with rope sizes up to 13 mm
UL Classified to NFPA 1983 – General Use
3 Sigma MBS 78 kN (17,534 lbf)
PRODUCT WEIGHT 1.9 LB (850 G)

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
C300436		CMC PMP Swivel Pulley 2.6	Stock Level: Pre-order Special Order	RRP: $397.00	Quantity:		Add to Favourites

CMC Protech Pulleys

Ideal for mountain rescue, swift water, ski patrol, tower work or
other technical uses, where equipment weight is a significant
consideration, these lightweight, full-strength Prusik-minding pulleys
feature extremely low-profile stainless steel hardware to reduce
snagging on rocks, roots, and uneven surfaces. By machining the side
plates, the thickness of the metal can be optimized to maximize the
strength-to-weight ratio, a process that cannot be done with the
traditional bent metal side plates. The unique axle assembly delivers a
smooth side plate and impressive strength. The aluminum sheave is
mounted on sealed ball bearings for high efficiency. Ideal for small
block-and-tackle kits.
Note: Not compatible with 1/2-in (12.5-mm) or larger ropes.
Do not load a single side only of a double sheave pulley
Product Weight 3.3 oz (94 g)
Sheave Tread Size 1 x 7/16 in (25 x 11 mm)
Type Single
Color Sand
NFPA Rating General Use
3 sigma MBS 36 kN.

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
C300501		CMC Protech Pulley Single	Stock Level: Pre-order Special Order	RRP: $139.00	Quantity:		Add to Favourites
C300502		CMC Protech Pulley Double	Stock Level: Pre-order Special Order	RRP: $240.00	Quantity:		Add to Favourites

CMC Rescue Pulleys

This lightweight, full-strength, Prusik-minding pulley is ideal for
mountain rescue, swiftwater, or other technical teams where equipment
weight is a significant consideration. By machining the side plates, the
thickness of the metal can be varied to maximize the strength-to-weight
ratio, a process that cannot be done with traditional bent metal side
plates. Sealed ball bearings provide high efficiency and aluminum side
plates protect the rope. An extremely low-profile stainless steel axle
assembly reduces snagging on rocks, roots, and uneven surfaces. Designed
for lifeline up to 1/2 inch (13 mm) in diameter.
38 x 13mm Sheave
145g
56kN Prussik minding

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
C300301		CMC Rescue Pulley Single	Stock Level: Pre-order Special Order	RRP: $155.00	Quantity:		Add to Favourites
C300302		CMC Rescue Pulley Double	Stock Level: Pre-order Special Order	RRP: $228.00	Quantity:		Add to Favourites

CMC Swivel Double Pulley

The Swivel Double Pulley features aluminum sheaves and an integrated
becket for building mechanical advantage systems. This double pulley is
an excellent addition to rescue and rope access gear caches that need to
be rounded out or enhanced.
Features
Rotating swivel aligns rope with direction of pullI
Integrated becket for mechanical advantage systems
Pivoting side plates open without having to disconnect pulley from anchor
Double-detent button prevents accidental opening of side plates
Aluminum sheaves for lightweight durability
High-efficiency sealed ball bearings
Integrated swivel minimizes overall system length and increases travel

Do not load a single side only of a double sheave pulley.
PRODUCT WEIGHT 14.6 OZ (414 G)
TYPE DOUBLE SHEAVE TREAD SIZE 1-1/2 X 1/2 IN (38 X 13 MM)
SHEAVE ALUMINUM
COLOR BRONZE / SLATE
NFPA RATING GENERAL USE
3 SIGMA MBS 43 KN

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
C300432		CMC Swivel Double Pulley	Stock Level: In Stock Special Order	RRP: $365.00	Quantity:		Add to Favourites

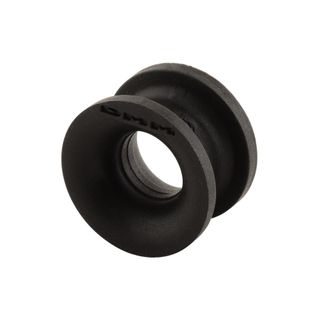

DMM Grommet

The Grommet is a polymer insert designed to fit in devices to provide a
flexible friction interface between the device and a connector.
This minimises any unplanned movement and so optimises the configuration.
The Grommet fits perfectly in any of the 16mm attachment holes of the DMM
Triple Attachment/Hitch Climber pulley.

Sold as singles

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
96DGR		DMM Grommet	Stock Level: In Stock	RRP: $4.90	Quantity:		Add to Favourites

DMM Gyro Pulleys

Developed in conjunction with our industry partners, the Gyro offers excellent performance in any rigging scenario.
A strong swing cheek pulley with high efficiency roller bearings that can be used for rescue loads.

DMM iD is built into every Gyro pulley, so the range can be easily integrated into PPE safety management systems.

MBS 50kN
WLL 10kN
Dimensions 97 x 68 x 31mm
Weight 225g
Max. Rope Diameter 13mm
Certification NFPA 1983: 2017 G, EN 12278:2007

Code	Product Name	Stock Level	Price	Quantity	Wishlist
96DPG	DMM Gyro Pulley	Stock Level: Out of Stock	RRP: $199.00	Unavailable for Online Purchase	Add to Favourites
96DPGPM	DMM Gyro Prussik Minding	Stock Level: In Stock	RRP: $199.00	Quantity:	Add to Favourites
96DPGT	DMM Gyro Twin Pulley	Stock Level: Out of Stock	RRP: $225.00	Unavailable for Online Purchase	Add to Favourites

DMM Hitch Climber Eccentric

The Hitch Climber Eccentric is an evolution of the classic Triple Attachment Pulley that became widely known as the ‘Hitch Climber’.
The design improvements are the result of over a decade of Hitch Climber design and manufacturing expertise, together with
feedback from climbers.

The new geometry offers greater efficiency combined with a striking aesthetic. The ‘pushing plates’ will advance your friction hitch earlier
and the optimised fairlead flairs direct rope towards the sheave when tending slack.
Also features a large sheave with an efficient roller bearing and a stainless steel axle. Patent pending.
99 x 76mm
176g
Rope range 7-14mm
MBS 32kN
WLL 6kN
EN12278:2007

Code	Product Name	Stock Level	Price	Quantity	Wishlist
96DHCEGL	DMM Hitch Climber Eccentric GOLD	Stock Level: Out of Stock	RRP: $167.00	Unavailable for Online Purchase	Add to Favourites
96DHCEMG	DMM Hitch Climber Eccentric GREY	Stock Level: Out of Stock	RRP: $167.00	Unavailable for Online Purchase	Add to Favourites
96DHCER	DMM Hitch Climber Eccentric RED	Stock Level: Out of Stock	RRP: $167.00	Unavailable for Online Purchase	Add to Favourites
96DHCERGR	DMM Hitch Climber Eccentric GREEN	Stock Level: Out of Stock	RRP: $167.00	Unavailable for Online Purchase	Add to Favourites

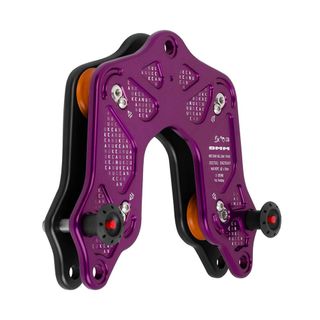

DMM Keanu Trolley

Compact trolley for highline rigging and rescue operations. If precision, speed and efficiency are important in your reeve, then the Keanu is your answer. By incorporating multiple sheaves within fixed side plates, not only have we ensured that you won’t forget critical rigging components, we have created a trolley that makes it easier to lift and move loads with precision and speed.

Keanu is lighter and smaller than highline assemblies configured using multiple components. Series redundancy can be configured with the addition of pulleys and lines via quick release locking pins. Two Keanu trolleys can be bolted together to create parallel redundancy using a joining kit . All components are replaceable, so maintenance can be carried out by end users, making these trolleys ideal for rescue teams, arborists and theatre riggers.
Delivery time approx 3 weeks
Colour Purple/Matt Grey/Orange
Dimensions 220 x 250 x 40
Weight 1698g
Rope Range 13mm Max
MBS 50kN
WLL 10kN
Certification EN12278:2007

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
DTR400		DMM Keanu Trolley	Stock Level: Pre-order Special Order	POA			Add to Favourites

DMM Pinto Pulley

With beautifully smooth parallel connection holes and a load bearing
becket, Pinto pulleys can be clipped, hitched, spliced or threaded to
give numerous work and rescue configurations. Loved the world over by
Treecare professionals, they are equally as useful for rescue and
hauling situations.

Colour Red
MBS 50kN
WLL 10kN
Dimensions 90 x 43 x 32mm
Weight 114g
Max. Rope Diameter 14mm
Certification NFPA 1983: 2017 G, EN 12278:2007

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
96DPP110		DMM Pinto Pulley	Stock Level: In Stock	RRP: $85.00	Quantity:		Add to Favourites

DMM Pinto Rig

A chunky version of our Pinto Pulley for more efficient rigging and
hauling. With beautifully smooth parallel connection holes and a load
bearing becket, Pinto pulleys can be clipped, hitched, spliced or
threaded to give numerous work and rescue configurations. Loved the
world over by Treecare professionals, they are equally as useful for
rescue and hauling situations.

Colour Purple
MBS 50kN
WLL 10kN
Dimensions 100 x 48 x 37mm
Weight 162g
Max. Rope Diameter 16mm
Certification NFPA 1983: 2017 G, EN 12278:2007

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
96DPP120		DMM Pinto Rig	Stock Level: Out of Stock	RRP: $115.00	Unavailable for Online Purchase		Add to Favourites

DMM Pinto Spacers

An essential component for Pinto applications where textile connecting
elements tend to compress the side plates
16.5mm ID x 12.5mm
11g

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
96DPP110SPA		DMM Pinto Spacer	Stock Level: In Stock	RRP: $10.00	Quantity:		Add to Favourites
96DPP120SPA		DMM Pinto Rig Spacer	Stock Level: In Stock	RRP: $10.00	Quantity:		Add to Favourites

DMM Triple Attachment Pulley (Hitch Climber )

Everyone's favourite Pulley!
The Triple Attachment Pulley forms an integral part of the renowned Hitch Climber System and is a firm
favourite of working at height professionals the world over. The three hole construction makes rigging
and organising much simpler and allows for off-centre hanging to minimise rope to pulley friction.

MBS: 30kN
WLL:6kN
Max rope dia: 14mm
EN 12278:2007

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
96DHC		DMM Triple Attachment Pulley (Hitch Climber )	Stock Level: In Stock	RRP: $85.00	Quantity:		Add to Favourites

DMM Triple Attachment Pulley 2

Everyones favourite pulley just got better! The Triple Attachment Pulley forms an integral part of the Hitch Climber System and is a firm favourite of working at height professionals the world over. Three hole contruction makes rigging and organising much simpler and allows for off-centre hanging to minimise rope to pulley friction.
The updated design features sealed bearings in place of bushings, offering improved efficiency. Improving ease of use, the new U shape ( rather than V shape ) above the sheave increases volume. This means rope feeds in more easily when used in hitch climber systems.
Features
- Bushings have been replaced with sealed bearings
- Updated straight sides tend the hitch better
- Extra volume in U shape rather than V shape above sheave means rope feeds in more easily when used in hitch climber system
- Rigging plate helps organise single or multiple attachments
- Fairlead flares help maintain high working efficiency
- compatible with most carabiner shapes and many textile connecting elements including ropes and webbing
- Size of attachment holes reduce probability of unwanted rotation of locking carabiners
- Direct connections to textile components at the rounded edged attachment holes, helping to reduce system costs, increase lift height, minimise space required and enhance tolerance to torsion
- Side plate shape allows an autoblock knot to function when the rope approaches the sides as well as the bottom of the pulley
- Tamper proof construction

30kN MBS
6kN WLL
94 x 68 x 33mm
150g
14mm Max rope diameter
42mm Sheave diameter
EN12278:2007

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
DPUL700RD		DMM Triple Attachment Pulley 2	Stock Level: In Stock Special Order	RRP: $132.00	Quantity:		Add to Favourites

Edelweiss Rotor 113R Bearing

ROTOR is a compact fixed side plate single pulley designed for ropes up to 12mm
Height 81 mm
Width 44 mm
Material Light Alloy
Sheave 21 mm
Diameter max. 12 mm
Weight 90 g
Breaking strength 20kN
Maximum workload 2 x 2,5 kN = 5 kN
Standard CE - EN12278 - UIAA
Colours may vary

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
7SWPEDB		Edelweiss Rotor 113R Bearing	Stock Level: In Stock	RRP: $69.00	Quantity:		Add to Favourites

Edelweiss Trafic 111 Pulley

TRAFIC 111 is a compact mobile plate single pulley (brass bearing) designed for ropes up to 11mm.
Height 72 mm
Width 58 mm
Material Light Alloy
Sheave 27,5mm
Diameter max. 11mm
Weight 120 g
Breaking Strength 20 kN
Maximum workload 2 x 2,5kN = 5 kN
Standard CE - EN 12278 - UIAA
Colours may vary

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
7SWPT		Edelweiss Trafic 111 Pulley	Stock Level: In Stock	RRP: $45.00	Quantity:		Add to Favourites

Edelweiss Trafic 116 Single Pulley

TRAFIC 116 is a mobile plate single pulley designed for hauling systems and heavy loads
(brass bearing), it accepts ropes up to 16mm.
Colours may vary

Height 121 mm
Width 82 mm
Material Light Alloy
Sheave 48 mm
Diameter max. 16mm
Efficiency N/A
Weight 270 g
Breaking strength 30 kN
Max workload 2 x 2,5kN = 5kN
StandardCE - EN 12278 - UIAA

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
97972E		Edelweiss Trafic 116 Single Pulley	Stock Level: In Stock	RRP: $79.00	Quantity:		Add to Favourites

Edelweiss Trafic 216 Double Pulley

TRAFIC 216 is a mobile plate double pulley designed for hauling systems and heavy loads
(brass bearings), it accepts ropes up to 16mm.
Equiped with a bottom becket to create complex systems.
Colours may vary

Height 143 mm
Width 82 mm
Material Light alloy
Sheave 48 mm
Diameter max. 16mm
Efficiency N/A
Weight 475 g
Breaking strength 30 kN
Maximum workload 2 x 2 x 2,5kN = 10kN
Standard CE - EN 12278 - UIAA

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
97972TE		Edelweiss Trafic 216 Double Pulley	Stock Level: In Stock	RRP: $112.00	Quantity:		Add to Favourites

Shopping Cart

Search

Shop Now

Pulleys
