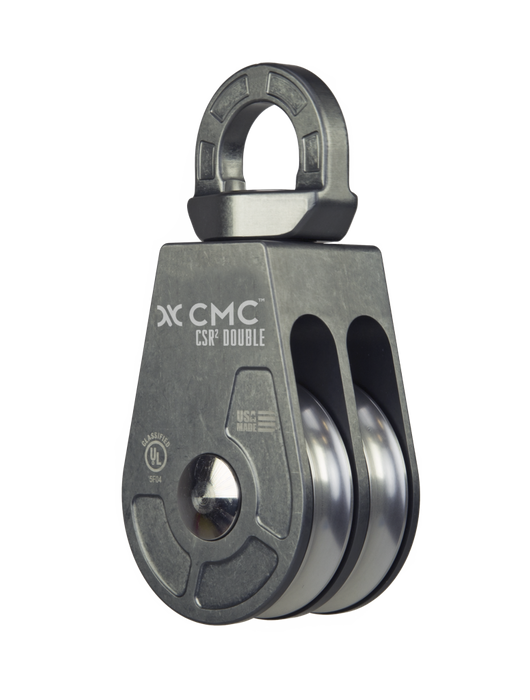

CMC CSR2 Double Pulley
Description
The design of our redesigned CSR2 (Confined Space Rescue) Pulley is stronger yet lighter and incorporates 7/16 in (11 mm) to 1/2
in (13 mm) life safety rope. Ideal for industrial applications as well as many rescue operations, the CSR2 uses our proprietary,
patented locking system, which eliminates a toothed cam or Prusik so it can be easily and safely released while under load. (The absence of the
toothed cam means that even if the system is fully collapsed and pulled tight, it can still be released easily. Systems using a toothed cam must
be raised even further before the cam can be released, which can be impossible if the system is fully collapsed without thinking about this
problem ahead of time – causing potential problems with the load on the system becoming stuck.) An integral thrust-bearing swivel reduces torque
by aligning the pulley with the load, thereby increasing efficiency and safety. Its larger size allows for the easy application of rescue-size
carabiners.
Machined from a solid block of aircraft-grade aluminum, the CSR2 features a high-strength aluminum side plate, sealed bearings and
anodized aluminum sheaves. The side becket location allows for maximum lift height and full retraction of the system, and a removable becket
cover facilitates changing out lifeline with sewn terminations.
All-new stronger, lighter-weight design
Compatible with 11-13 mm life safety rope
Meets NFPA 1983 (2017 ED) – General Use
CSR2 Pulley MBS 46 kN (10,341 lbf) / CSR2 Double Pulley MBS 45 kN (10,116 lbf)
Machined from solid block of aircraft-grade aluminum
Made in USA
Weight 1.5 lb (680 g)
Sheave Tread Size 2 1/4 x 1/2 in (57 x 13 mm)
Color Gray
NFPA Rating General Use
MBS 45 kN (10,116 lbf)
