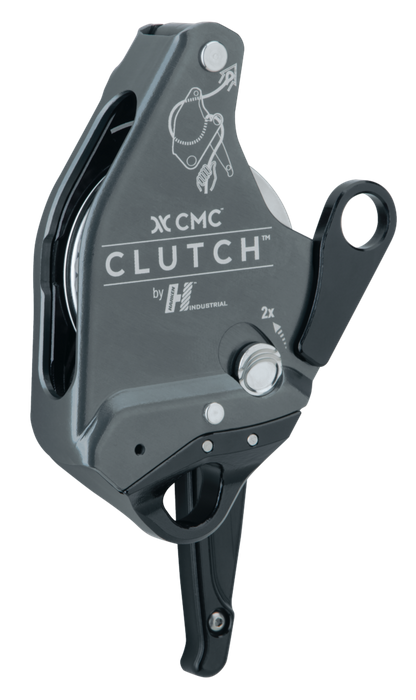

CMC Clutch 11mm
Description
More is Possible
Introducing the all-new CLUTCH, the latest evolution in rescue and rope access hardware that enables the technical rope professional to do more with
less. This multi-purpose device was designed and engineered in collaboration by two companies with a collective 90 year history in rope
management under heavy loads: CMC, a company with roots in rescue and rope access, and Harken Industrial, a manufacturing company with roots
in high performance sailing.
Designed for intuitive, efficient operation, ease of use and optimal control, the versatile CLUTCH is suited to a multitude of rigging operations:
Single wearable tool suited for efficient hauling, controlled lowering, smooth personal descent, easy ascending and belaying.
Stainless steel ratcheting and rotating sheave provides efficient and audible progress capture.
Rope loading/unloading is secured with an innovative double-latched side plate design that is independent of the device‘s attachment point.
Anti-Panic brake and force limiting features ensure operational safety and overload protection.
Machined aluminum chassis clad with stainless steel wear guards ensures lightweight durability.
Integrated becket allows for direct connection of mechanical advantage systems.
The only 10.5-11 mm rope diameter compatible device certified to NFPA 1983 (G-Rated), ANSI Z359.4 and EN 12841/C, 341/2A, and 15151/8.
The CLUTCH and CMC’s G11™ Lifeline can be used together to build NFPA G rated systems using 11 mm rope, saving space and reducing weight.
Patented and Made in the USA
ROPE SIZE 10.5 – 11 MM (7/16 IN)
WEIGHT 836 G (1.84 LBS)
DIMENSIONS 208 X 112 X 47 MM (8.2 X 4.4 X 1.9 IN)
MAX LOAD 272 KG (600 LBS)
3-SIGMA MBS PULLEY 40 KN (8,992 LBF) / BECKET 22 KN (4496 LBF)
CERTIFICATIONS NFPA 1983 (2017 ED) GENERAL USE; ANSI/ASSE Z359.4-2013; EN 12841: 2006/C; EN 341: 2011/2A; EN 15151-1: 2012/8
