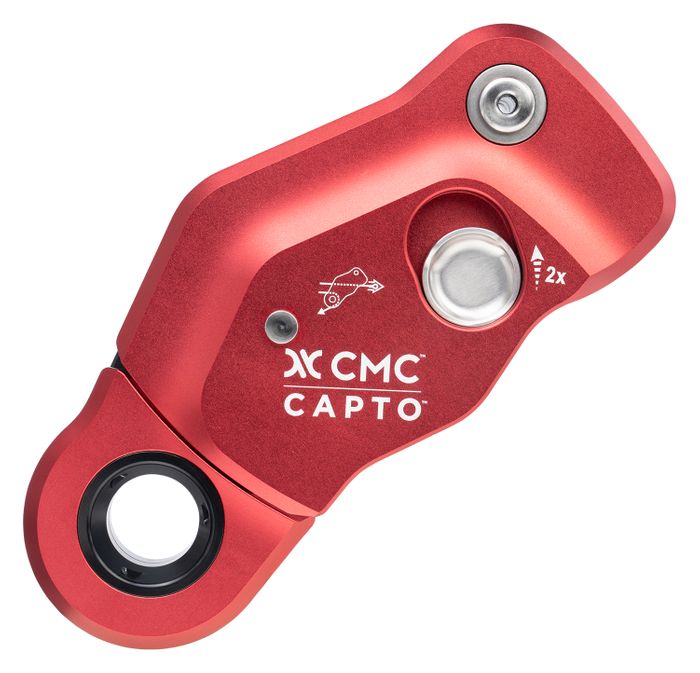

CMC Capto 13mm
Description
CAPTO is an intuitive device that combines a multi-functional rope grab, high-efficiency pulley, and
integrated becket for easy hauling and ascending. Built around an innovative V-groove Cam,
CAPTO is designed to handle rescue loads while providing force-limiting overload protection.
FEATURES
• Combines a rope grab, pulley, and becket in a compact device
for hauling & ascending.
• Incorporates a force-limiting V-groove Cam designed to provide
overload protection.
• Installs quickly on tensioned and un-tensioned lines, no need for
knots or hitches.
• Opens one-handed and gives simultaneous access to
components for rapid rigging.
• Builds efficient M/A systems and smoothly progresses from a
3:1 to a 5:1 M/A.
• Releases and resets easily, even after high loading, making it
ideal for rescues.
• Travels down rope in vertical systems, resetting and maximizing
the haul field.
• Allows installation of an accessory loop for remote resets and
device stowage.
• Provides an integrated becket for M/A components, lanyards,
and foot loops.
• Replaces multiple devices in one, streamlining training and
operations.
336013
12.5 - 13 mm (1/2 in) Rope
513 g
150 x 70 x 31 mm
36 kN pulley
Certifications
• NFPA 2500 (1983) General Use; Rope Grab
• NFPA 2500 (1983) General Use; Pulley
