Lanex TM 9N Tripod
Description

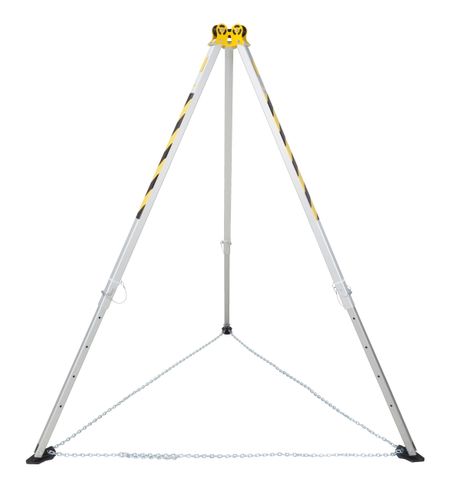

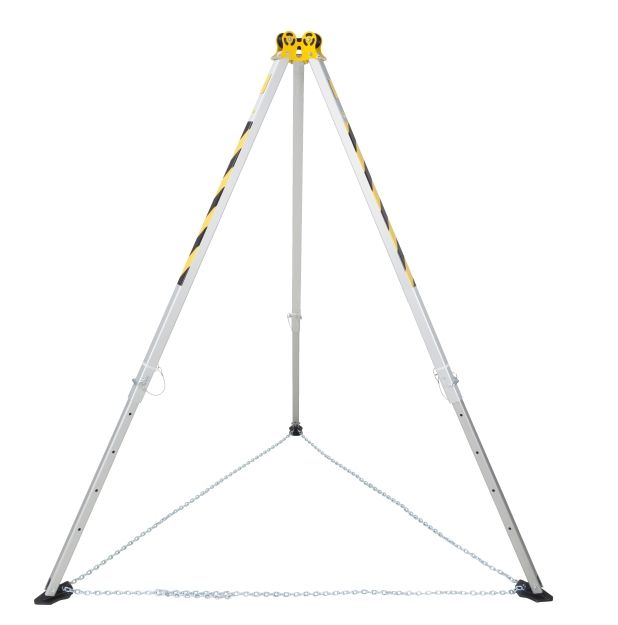

The lightweight aluminum safety tripod TM9-N can be used as a component of fall protection equipment. The TM 9N tripod provides protection for up to 3 people simultaneously. The TM 9N tripod consists of a powder-coated steel head, equipped with 3 ball-bearing polyamide rollers for guiding the work rope of RUP and CRW series devices.
The head is also equipped with 3 anchor points located on the sides of the head. Each of these points can be used as an anchor point for fall protection equipment. One such point can only be used by 1 user at a time.
Height: 209 cm
Opening diameter under tripod: 149 cm
Leg spacing: 128 cm
Equipment weight: 15,4 kg
Anchor points on the head: 3
Lifting/lowering for: max. 3 persons
Dimensions: 176 cm × 26 cm × 23 cm
Max. weight of lifted or lowered load and persons: 500 kg
EN 795 B
